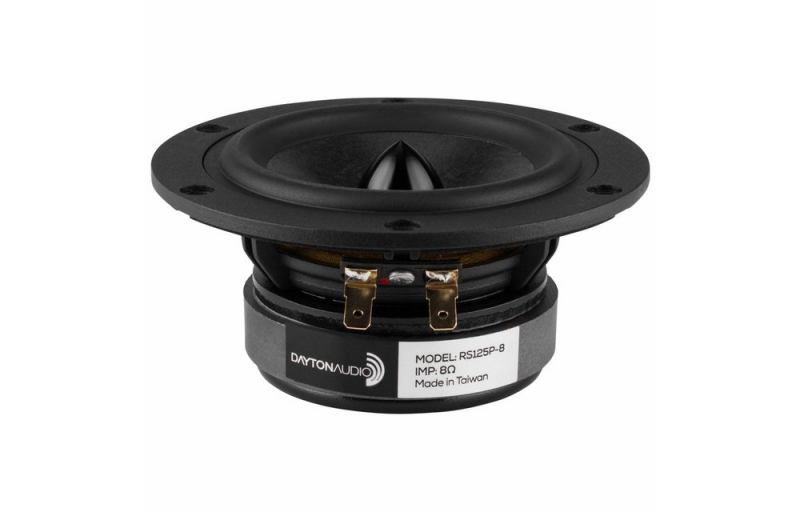

Dayton RS125-8

The Dayton Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.

Specifications:
* Power handling: 30 watts RMS/45 watts max
* VCdia: 1" * Le: .72 mH
* Impedance: 8 ohms
* Re: 6.3 ohms
* Frequency range: 70-4,000 Hz
* Fs: 82 Hz
* SPL: 86.5 dB 1W/1m
* Vas: .13 cu. ft.
* Qms: 3.31
* Qes: .67
* Qts: .56
* Xmax: 2.8mm
* Dimensions: Total:125,5mm LK: 94mm MG:91mm Höhe:69mm Korb:4mm

• Long-excursion motor and suspension for strong bass performance
• Subtle yet high-tech look makes a bold cosmetic statement
• Ultra-low stray magnetic field allows extremely close proximity to CRT's
• Designed and engineered in the U.S.A.
