Products description

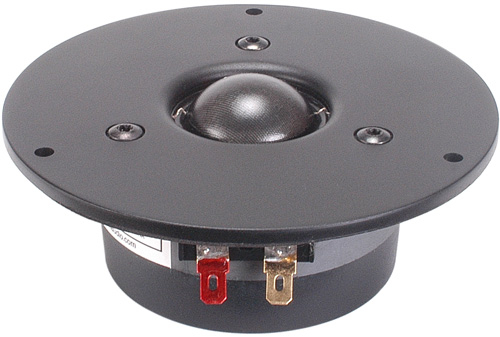

Superior European design and performance at a fraction of the cost of similar audiophile silk dome tweeters! Clinically tested and compared to Morel with amazingly similar results! Recommended for crossover points as low as 1800 Hz! Specifications: * Power handling: 50 watts RMS/75 watts max * Voice coil diameter: 1-1/8" * Impedance: 8 ohms * Re: 5.5 ohms * Frequency response (± 2 dB): 1,300-20,000 Hz * Fs: 637 Hz * SPL: 89 dB 1W/1m * Magnet weight: 6 oz. * Dimensions: Overall Diameter: 4-5/16", Cutout Diameter: 3-1/8", Mounting Depth: 1-1/8", Magnet Diameter: 2-3/4", Magnet Height: 1-1/8".
Typ Hochtöner
Imp. (Zn/ohm) 8
Freq.(Hz) 2000-20000
Nominal (W) 50
SPL (1W/1M) 89,00
VC (d) 29
Re (Ohm) 5,6
VC (Le/mH) 0,04
fs 637
Sd cm2 6,6
QMS 1,97
QES 1,6
QTS 0,88
Membranmaterial Seide
Außendurchmesser (mm) 110,00
Einbaulochmaß (mm) 78
Einbautiefe (mm) 32
Customers who bought this product also bought the following products:
Es wird immer an einem Stück geliefert
